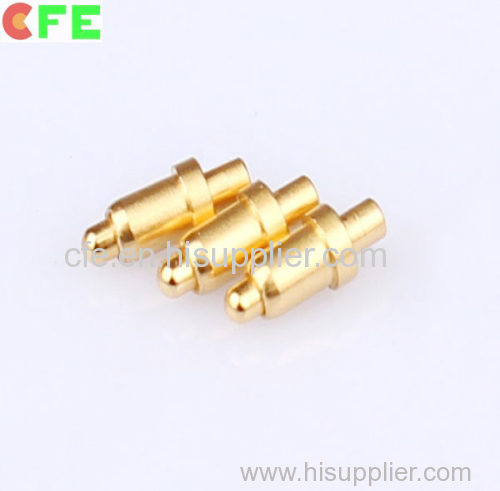

pin connector for PCB from China manufacturer - Dongguan Cfe Electronic Co.,Ltd

Price:	0.3~3.0 USD
Payment Terms:	T/T,WU;Paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CFE-1106-5

Production Capacity: 500000

Delivery Date: 10-12 days for production

Means of Transport: Air

Packing: PE bag and box

*High reliablity
*High stroke ability
*High design flexibility
*High durability
*High power

Itemname	Data
Materials& Plating	Barrel:Brass,Beryllium copper,PhosphorBronze
	Plunger:Brass,Beryllium copper,PhosphorBronze
	Spring:Stainlesssteel,Music wire
	Plating:Gold,Silver,Palladium-Nickel
	Flammability:UL94 V-0
	Insulator:HTN,LCP,PBT

TechnicalSpecification	Rated Current:5A-10A(differentstructures)
	Rated Voltage:AC/DC 12V
	Contact Resistance:50mΩ Max. (stillness,Working stroke)
	Operating Temp.-40°-+85°
	Life test:100,000 ~1,000,000
	Reflow Temp.265°, 4~5sec

Environmental TestStandards	Salt spray test EIA-364-26 methodB.Ka:48h
	Humidity test EIA-364-31B method Ⅱ conditionA, 96h
	Temperaturecycling or thermal shock test EIA-364-32D method A condition:-40°-105,Fivecycle
	Temperature life test EIA-364-17B method-Acondition-3 condition-A: 85°,96h
	Vibrationtest EIA-364-28E condition-Ⅱ,10~500Hz,10g acceleration shock time:15minites
	Mechanical shock test EIA-364-27B condition-A:50g acceleration, triaxial six sides, each axis three times
	Resistance to solder test EIA-364-56Ccondition-D level 2:260° 20s
	Solderabilitytest EIA-364-52: 245°,5s

Certifications	ISO9000,QC080000,ISO14001
Certifications	ROHS,Reach,HFstandards

Ouradvantages:

1. Professional & experiencedengineers
2. Competitiveprice
3. In time service
4. Product warranty
5. More than 10years experiences.
6. High technology
7. Lead time: short lead time
8.Flexible to meet dynamic requirements
9. high quality of pogo pin connector

4 Benefitsof Spring Loaded Connector (Pogo pin)

1. No need to use receptacles, which helpreduce total costs

2. Large-scale facilities are not necessaryeven when manufacturing custom products

3. Advantageous for saving space anddownsizing

4.highly durable

Product application technologyadvantages:

1. HF process & Lead free process
2. Insulate spring: SUS303 and musicwire materials,Surface can be gold-plated (low impedance) or insulation layerplating (high current)
3. The vacuumbarrel plating: Using Japanese technology of vacuum barrel plating, gold-platedspecific: 1-200 u; No carbon and fluoride pollution
4. High durability: The Products life highest can be1,000,000 times
5. High rated current:we have largely produced high rated current 5-10A , Can customize small specificof high current products
6. Smallimpedance values
